RSI Divergence TrendLine

Recommended Posts

// RSI Divergence TrendLine

// Author: MARKPLEX Code Divergence

// http://markplex.com/tutorial4.php

// version: 1.0



// Author: aaa

// version: 2.0

// Date: 20100501

// added:

// divergence on top +

// Line.Color.Top + Line.Color.Bot + Line.Size + Plot.RSI in inputs



// Author: aaa

// version: 2.01

// Date: 20100515

// added:

// Alert + Line.Offset in inputs



***********************



MACD Divergence TrendLine

Here



http://www.traderslaboratory.com/forums/f46/macd-divergence-trendline-7845.html



MACD Divergence TrendLine Indicator (Only 4 Multicharts)

Here



http://www.traderslaboratory.com/forums/f46/macd-divergence-trendline-7845.html#post95841



*********************



Sto Divergence TrendLine

Here



http://www.traderslaboratory.com/forums/f46/stochastic-divergence-trendline-7244.html



**********************

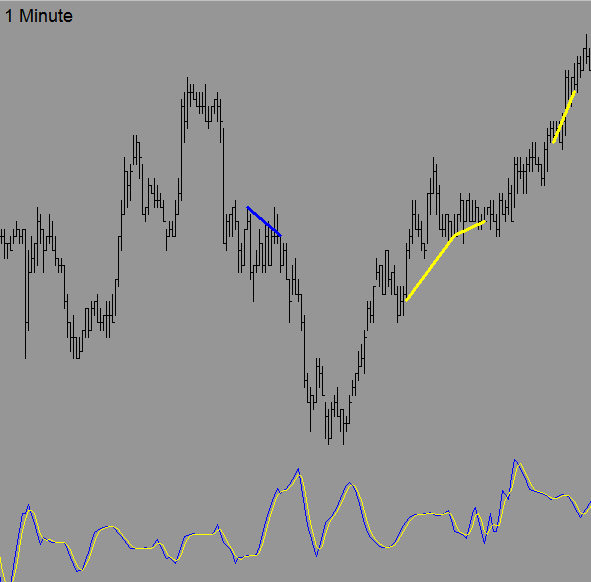

attachment.php?attachmentid=21012&stc=1&d=1273914061





Nota Bene



RSI Divergence TrendLine Indicator.pla works ONLY with Multicharts

RSI DIVERGENCE TRENDLINE.ELD

RSI Divergence TrendLine.pla

RSI Divergence TrendLine.txt

RSI Divergence TrendLine Indicator.pla


Share this post


Link to post
Share on other sites

aaa- is there a way to add to this indicator so when it enters overbought/sold levels that the respective colour changes.



I tried using the simple RSI code as a guide, but it doesn't appear to take



if var0 > OverBought then
SetPlotColor( 1, OverBColor )
else if var0 < OverSold then
SetPlotColor( 1, OverSColor ) ;

Share this post


Link to post
Share on other sites

Yes



almost everything is possible in EasyLangage



Try again or



wait untill next WE



I will add this feature 2 a new indicator



rgds



PS : Please, try 2 add a graphique with explanation on it when U ask something here ;



It should B usefull also 2 give as much information as possible (mockup, links, PDF, etc...)



And of course, if U find a solution it's kind 2 post it.



It could B usefull 4 others



******************

Edited by aaa

Share this post


Link to post
Share on other sites

I have also sent a post in coder thread, maybe this is the place....



Hi!

I have found a very nice and supporting indicator for MetaTrader. If anyone can convert the indi to work in Global Zen Trader platform (the platform allows import of easylanguage and C# code). The indi detects traditional divergence of price and RSI indicator and plots an arrow in the indicator window and also sets a sound alert. The indicator also detects hidden divergences. Please have a look at the indicator and see how it works. Personally I use it to time position in the trend direction after a pullback.



Sincerely

Adam

RSI_Divergence_v2.mq4

Share this post


Link to post
Share on other sites


The indicator also detects hidden divergences



Hi Adam



Try this hidden divergences indic below



U can mix regular div + hidden div on a price chart



The code is easily tweakable



Only 4 Multicharts users

I've posted also an indicator which plot div lines directly on the sub chart



rgds



attachment.php?attachmentid=23596&stc=1&d=1295693624

StochRSI Hidden Divergence TrendLine.txt


Edited by aaa

Share this post


Link to post
Share on other sites

Thanks AAA!



But I´m not the man to work it out in my platform. Anyway, I have add some piece of code together and give it to U as thanks for help.

This code displays inside bars and the inside bar have to be in a less range than Xbars before(adjustable). U can put a by order 1 tick above the bar or a sell order 1 tick below. It works in any time frame.



Thanks

Adam

GollumNarrowIB.txt

Share this post


Link to post
Share on other sites

Gollumtrader



condition1=(High-Low)<Lowest((High-Low),Length)[1];



Good idea ! I've added it on my birds lines indicator & it looks good

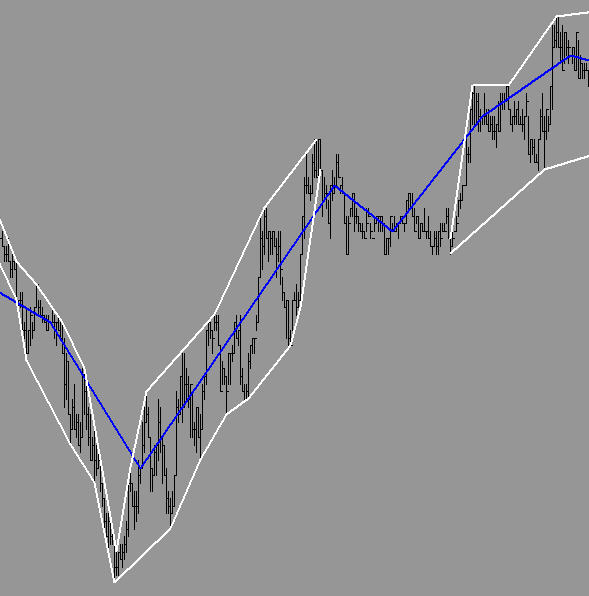

attachment.php?attachmentid=23619&stc=1&d=1296299681



************************************



Have a look on the Excellent Tams' Candle Pattern indicator below



Best rgds



http://www.traderslaboratory.com/forums/f46/candle-pattern-5736.html




PatternName = "3InsideUpPattern";
if ((O2>C2)AND (C1>O1) AND (C1<= O2) AND (C2<= O1) AND ((C1-O1)<(O2-C2))
AND (C>O) AND(C>C1) AND (O>O1)) then
begin
Message = Message + PatternName + " ";
plot70(c, "3InsideUpPattern");
end
else
noplot(70);


PatternName = "3InsideDownPattern";
if ((C2>O2)AND (O1>C1) AND (O1<= C2) AND (O2<= C1) AND ((O1-C1)<(C2-O2))
AND (O>C) AND(C<C1) AND (O<O1)) then
begin
Message = Message + PatternName + " ";
plot67(c, "3InsideDownPattern");
end
else
noplot(67);


Edited by aaa

Share this post


Link to post
Share on other sites

Well I have to say after weeks of searching this may well be what I am looking for. However, can this indicator be used on the prorealtime charting software and if so could it also be adapted to a screener for finding pairs meeting the criteria. I also would like to know if the RSI can be set against Zigzag as opposed to price. Terribly sorry to appear so dim but I have tried albeit without success to write my own software and to be perfectly am failing miserably.



Many thanks, s2m

Share this post


Link to post
Share on other sites



.... Terribly sorry to appear so dim but I have tried albeit without success to write my own software and to be perfectly am failing miserably.



Many thanks, s2m



then do at least one thing that is not dim -- get TradeStation or MultiCharts.

Share this post


Link to post
Share on other sites
