Tams

Array (EasyLanguage)

Recommended Posts

This thread is about Arrays.









Array

Declares one or more names as arrays, containing multiple variable data elements; specifies the array structure, data elements type and initial value, update basis, and data number, for each of the arrays.



Data elements type can be numerical, string, or true/false.



The number of elements in an array can be fixed or dynamic (unlimited).



In arrays with a fixed number of elements, the elements can be arranged in single or multiple dimensions.



A one-dimensional 10-element array contains 10 elements,

a two-dimensional 10-element by 10-element array contains 100 elements,

a three-dimensional 10 by 10 by 10 element array contains 1000 elements,

a four-dimensional 10 by 10 by 10 by 10 element array contains 10000 elements, etc.



The maximum number of array dimensions in EasyLanguage is 9.



Each element in an array is referenced by one or more index numbers, one for each of the dimensions. Indexing starts at 0 for each of the dimensions.



Dynamic arrays (arrays with an unlimited number of elements) are one-dimensional, and are initialized at declaration as having only one element. Declared dynamic arrays can be resized using Array_SetMaxIndex.



Elements can be manipulated individually or as a group, in all or part of an array.



Usage

Array:<IntraBarPersist>ArrayName1[D1,D2,D3,etc.](InitialValue1<,DataN>),

<IntraBarPersist>ArrayName2[D1,D2,D3,etc.](InitialValue2<,DataN>), etc...



Parameters inside the angled brackets are optional



Parameters

IntraBarPersist - an optional parameter; specifies that the value of the array elements is to be updated on every tick

If this parameter is not specified, the value will be updated at the close of each bar.



ArrayName - an expression specifying the array name

The name can consist of letters, underscore characters, numbers, and periods. The name cannot begin with a number or a period and is not case-sensitive.





D - a numerical expression specifying the array size in elements, starting at 0, for each of the dimensions;

a single expression specifies a one-dimensional array,

two expressions specify a two-dimensional (D1 by D2) array,

three expressions specify a three-dimensional (D1 by D2 by D3) array, etc.

A dynamic array, with an unlimited number of elements, is specified by the empty square brackets: [] and will be a one-dimensional array.



InitialValue - an expression, specifying the initial value and defining the data type for all of the elements in the array

The value can be a numerical, string, or true/false expression; the type of the expression defines the data type.



DataN - an optional parameter; specifies the Data Number of the data series the array is to be tied to

If this parameter is not specified, the array will be tied to the default data series.



Examples

Declare Length and SFactor as 9-element one-dimensional numerical arrays with data elements' initial values of 0:



Array:

Length[8](0),

SFactor[8](0);





Declare Max_Price as a 24-element by 60-element two-dimensional numerical array, updated on every tick, tied to the series with Data #2, and with data elements' initial values equal to the value of Close function:



Array:IntraBarPersist Max_Price[23,59](Close,Data2);





Declare Highs2 as a dynamic numerical array with data elements' initial values of 0:



Array:Highs2[](0);











source: EasyLanguage manual

Edited by Tams

Share this post


Link to post
Share on other sites

Here you go:





Paul



Courtesy of Tradestation: http://www.tradestation.com



The Array concept it is actually very simple.

The attempt of this page is to demystify the concept with simple examples. Please feel free to edit as well as to add alternate methods to clarify the content



Think of an array as an Excel spreadsheet, where you have rows and columns.

It is from this approach that the following examples are designed.



* One Dimensional Arrays

* Multi Dimensional Arrays

* Populating Arrays

* Shuffling Array Data

* Sort new field into Array - soon





Incrementing : For Counter = 1 to Array_Size begin... end;

Decrementing : For Counter = Array_Size DownTo 1 begin... end;

One Dimensional ARRAYS



With one dimensional arrays you get one column with X number of rows to query.



Array: myArray [10] (0);



* the [10] defines one column with 10 rows (not to confuse but a 0 row is actually available too to make 11 )

* (0) = Numeric Data

* (Text) = would = String Data could be entered.





Multi-Dimensional Arrays



Multi-Dimensional arrays enable you to store vast amounts of data more similar to a spreadsheet, thus you could add a specific series of data per bar or per condition to back reference for compare.



Warning

More standard is the two dimensioned array, but since you can do more a warning must be stated here in using a three dimensional array

For example 3 dimensioned arrray would be myArray[10,10,10]; You should have your reasons well in order in advanced as improper dimensioning could easy take up too much memory as well as calculations time could be increased exponentially . The conceptualization of a three dimensional Array would be a spreadsheet cell hyperlinking to another completely new spreadsheet. A better example may be a pallet of boxs 10 across, 10 high and 10 deep. It starts getting very complicated at that level.



Two Dimensional Array



Array: myArray [10,10] (0);



the [10,10] defines 10 columns with 10 rows (or not counting the 0 row, 100 field to populate with data)



* (0) = Numeric Data

* (Text) = would = String Data could be entered.





So if you ask for

Value1 = myArray*[6,7]*; then you are looking for column 6, row 7's data.





Populating Arrays



Arrays values hold from bar to bar.

An array can be populated by a hard number as in:

myArray[4] = High;



or by a Counter method that you predefine variable name is arbitrary as long as the value is not higher than the declared dimensional value.



Var: Counter(0);



Counter = Counter +1;

myArray[Counter] = High;





Shuffling Array Data



Shuffling simply moves the first row of an array to the second and so forth leaving the Arrays first row open for a new entry.

Normally this is done in one step or procedure.



Single Dimension Array Shuffle



Array: myArray [10] (0);

Var: myArraySize(10);

Var: Counter1(0);

Var: HoldRow(0), SaveValue(0);

SaveValue = Value1; {your value or caluclation you want arrayed}

For Counter1 = 1 to myArraySize begin

holdRow = myArray[Counter1]; {save the current Value of this row for the next row }

myArray[Counter1] = SaveValue; {pass the newer Value to this row}

SaveValue = holdRow; {pass the old Value of this row for the next loop}





end;



Multi-Dimensioned Array Shuffle



The code below will shuffle a multi-dimensional array. A new row will be inserted in position 1 and roll the remaining rows back one row each.



Array: myArray [100,10] (0);

Var: myArraySize(100);

Array: Save[10](0); {used as holders for the shuffle}

Array: Hold[10](0); {used as holders for the shuffle}



Var: Z(0), X(0); {Using Single Letters as counters}





{Pass your newest set of Values to a one dimensional Array}



If condition1 then begin

{Sample Data}

Hold[1]= Date;

Hold[2]= Time;

Hold[3]= Open;

Hold[4]= High;

Hold[5]= Low;

Hold[6]= Close;

Hold[7]= UpTicks;

Hold[8]= Downticks;

Hold[9]= CurrentBar;

Hold[10]= close -close[1]0;



for Z = 1 to myArraySize begin



For X = 1 to 10 begin Save[X] = myArray [Z,X]; end; {pass Array Row to Save Array variable LOOP}



For X = 1 to 10 begin myArray [Z,X] = Hold[X]; end; {pass Hold Array variables row LOOP}



For X = 1 to 10 begin Hold[X] = Save[X]; end; {pass the SaveArray to Hold Array LOOP}



if Hold[1]= 0 then BREAK; {Get out of main LOOP if passed row /Hold Array is Empty }



end;

end;

Edited by Trader333

Share this post


Link to post
Share on other sites

I'm a good gal, I've made my homeworks.



Is it correct ?



Var:
count(         0 ),
count.end(   2 );

Arrays:
Line.ID[2](  0 ),
level[2](	0 ),
Color[2]( 0 );

Level[1] = HighD(1);
Level[2] = LowD(1);

Color[1] = blue;
Color[2] = red;

for count = 1 to count.end
begin
Line.ID[count]  = TL_New( d , t , level[count], d, t , level[count]);
TL_SetColor(Line.ID, Color[count]);
end;

Share this post


Link to post
Share on other sites

a little correction but the result has a lot of lines



Var:
count(         0 ),
count.end(   2 );

Arrays:
Line.ID[2](  0 ),
level[2](	0 ),
Color[2]( 0 );

Level[1] = HighD(1);
Level[2] = LowD(1);

Color[1] = blue;
Color[2] = red;

for count = 1 to count.end
begin
Line.ID[count] = TL_New( d , t , level[count], d, t , level[count]);
TL_SetColor(Line.ID[count], Color[count]);
TL_SetExtRight(Line.ID[count], true );
end;

Share this post


Link to post
Share on other sites
a little correction but the result has a lot of lines



wow... good job... you are trying hard.



maybe too hard.

I would have suggested you to start out with one array.

and you added trendline to the code as well !!!

you are taking on multiple challenges at the same time.







anyway, here's my notes:



You have the trendline starting point same as ending point...

ie. the resultant trendline will be a dot.

that's why you don't see anything unless you use the extend right option.



pls see attachment for detail.


Edited by Tams

Share this post


Link to post
Share on other sites

ThanX for your notes Mister TAMS



I like it hard ! :cool:



Starting point = ending point = OK for a day H/L



but



Date + time must start the day before



// Draw High and Low lines of the day before
// version 1.0
// Author: aaa
// Date: 20090425

Var:
count(       0 ),
count.end(   2 );

Arrays:
Line.ID[2](  	0 ),
level[2](	0 ),
Color[2]( 	0 ),
Size[2]( 	0 ),
Style[2]( 	0 );

level[1] = HighD(1);
level[2] = LowD(1);

Color[1] = blue;
Color[2] = red ;

Size[1] = 2 ;
Size[2] = 2 ;

Style[1] = 1 ;
Style[2] = 1 ;

for count = 1 to count.end
begin
Line.ID[count] = TL_New( d[1] , t[1] , level[count], d , t , level[count]);

TL_SetColor( Line.ID[count] , Color[count] );
TL_SetSize(  Line.ID[count] , Size[count]  );
TL_SetStyle( Line.ID[count] , Style[count] );
end;

Share this post


Link to post
Share on other sites
// Draw High and Low lines of the day before
// version 1.01
// Author: aaa
// Date: 20090425

Inputs:
Color.High(	blue 	),
Color.low(	red 	),
Size.HL(	2   	),
Style.HL(	1 	);

Var:
count(       0 ),
count.end(   2 );

Arrays:
Line.ID[2](  	0 ),
level[2](	0 ),
Color[2]( 	0 ),
Size[2]( 	0 ),
Style[2]( 	0 );

level[1] = HighD(1);
level[2] = LowD(1);

Color[1] = Color.High;
Color[2] = Color.low;

Size[1] = Size.HL ;
Size[2] = Size.HL ;

Style[1] = Style.HL ;
Style[2] = Style.HL ;

for count = 1 to count.end
begin
Line.ID[count] = TL_New( d[1] , t[1] , level[count], d , t , level[count]);

TL_SetColor( Line.ID[count] , Color[count] );
TL_SetSize(  Line.ID[count] , Size[count]  );
TL_SetStyle( Line.ID[count] , Style[count] );
end;

Share this post


Link to post
Share on other sites
It's a Great idea to create topics like this

Sorry, if it's not a really original indicator.... :2c:

It is only an exercice with arrays



it is fun just to plot lines here and there...

you'd never know, you might come up with a Nobel Prize winner by accident.

Share this post


Link to post
Share on other sites

Tams,



I think that I am in the wrong way



I have now the yesterday HL during 2 days



The code looks complicate and if I want lines during x days it should be very long



The goal is to have the Yesterday HL during x days



Are arrays the solution ?



Is a counter a solution ?



Inputs:
Color.HL(	blue 	),
Size.HL(	2   	),
Style.HL(	1 	);

Var:
count(       0 ),
count.end(   4 );

Arrays:
Line.ID[4](  	0 ),
level[4](	0 ),
DaysAfter[4](	0 ),
TimeAfter[4](	0 ),
DaysBefore[4](0 ),
TimeBefore[4](0 );

level[1] = HighD(1);
level[2] = LowD(1);
level[3] = HighD(2);
level[4] = LowD(2);

DaysBefore[1] = d[1] ;
DaysBefore[2] = d[1] ;
DaysBefore[3] = d[2] ;
DaysBefore[4] = d[2] ;

TimeBefore[1] = t[1] ;
TimeBefore[2] = t[1] ;
TimeBefore[3] = t[2] ;
TimeBefore[4] = t[2] ;

DaysAfter[1] = d[1] ;
DaysAfter[2] = d[1] ;
DaysAfter[3] = d[2]  ;
DaysAfter[4] = d[2] ;

TimeAfter[1] = t[1]  ;
TimeAfter[2] = t[1] ;
TimeAfter[3] = t[2]  ;
TimeAfter[4] = t[2] ;


for count = 1 to count.end
begin
Line.ID[count] = TL_New( DaysBefore[count] , TimeBefore[count] , level[count], DaysAfter[count]  , TimeAfter[count]  , level[count]);

TL_SetColor( Line.ID[count] , Color.HL);
TL_SetSize(  Line.ID[count] , Size.HL  );
TL_SetStyle( Line.ID[count] , Style.HL );
end;

Share this post


Link to post
Share on other sites
it is fun just to plot lines here and there...

you'd never know, you might come up with a Nobel Prize winner by accident.



Let's try the Tams Prize before ! ;)

Share this post


Link to post
Share on other sites
Tams,

I think that I am in the wrong way

I have now the yesterday HL during 2 days

The code looks complicate and if I want lines during x days it should be very long

The goal is to have the Yesterday HL during x days

Are arrays the solution ?

Is a counter a solution ?





if you only need 2 lines across... array might be an overkill.

edit: let me give it some thought on the alternative... will post later.





array is useful when you are dealing with a lot of data,

and that you need to access those data in a non-sequential manner.



the Zigzag indicator is a good example where an array is used to keep track of the trendline coordinates.

Edited by Tams

Share this post


Link to post
Share on other sites

Yes I reached my limits with arrays and I don't understand zigzag



I tried "my" indicator with 10 days long

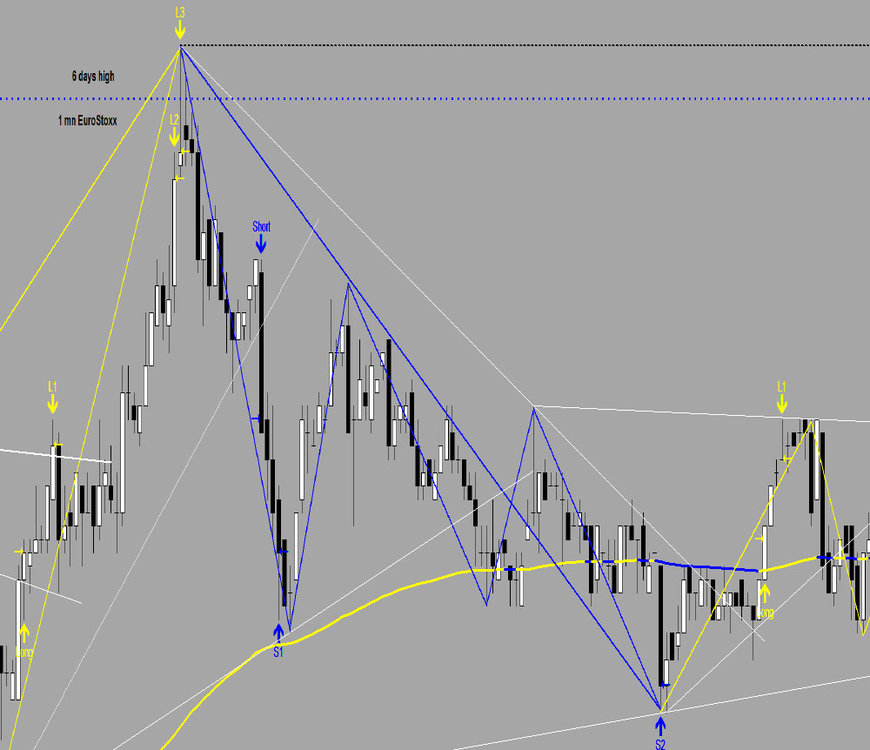

It looks interesting especially scalping in 1 mn : the price stops always for a short break at highest last 1, 2 3 or more past days (cf picture below)



If you have time Could you make a correct code ?



Here is my terrible one



It works but slows down dramatically the software



Also the style is off



Inputs:
Days.Nbr(	2 	),
Color.HL(	blue 	),
Size.HL(	2   	),
Style.HL(	1 	);

Var:
count(       0 ),
count.end(   Days.Nbr * 2 );

Arrays:
Line.ID[20](  0 ),
level[20](	0 ),
DaysAfter[20](0 ),
TimeAfter[20](0 ),
DaysBefore[20](0 ),
TimeBefore[20](0 );

level[1] = HighD(1);
level[2] = LowD(1);
level[3] = HighD(2);
level[4] = LowD(2);
level[5] = HighD(3);
level[6] = LowD(3);
level[7] = HighD(4);
level[8] = LowD(4);
level[9] = HighD(5);
level[10] = LowD(5);
level[11] = HighD(6);
level[12] = LowD(6);
level[13] = HighD(7);
level[14] = LowD(7);
level[15] = HighD(8);
level[16] = LowD(8);
level[17] = HighD(9);
level[18] = LowD(9);
level[19] = HighD(10);
level[20] = LowD(10);

DaysBefore[1] = d[1] ;
DaysBefore[2] = d[1] ;
DaysBefore[3] = d[2] ;
DaysBefore[4] = d[2] ;
DaysBefore[5] = d[3] ;
DaysBefore[6] = d[3] ;
DaysBefore[7] = d[4] ;
DaysBefore[8] = d[4] ;
DaysBefore[9] = d[5] ;
DaysBefore[10] = d[5] ;
DaysBefore[11] = d[6] ;
DaysBefore[12] = d[6] ;
DaysBefore[13] = d[7] ;
DaysBefore[14] = d[7] ;
DaysBefore[15] = d[8] ;
DaysBefore[16] = d[8] ;
DaysBefore[17] = d[9] ;
DaysBefore[18] = d[9] ;
DaysBefore[19] = d[10] ;
DaysBefore[20] = d[10] ;

TimeBefore[1] = t[1] ;
TimeBefore[2] = t[1] ;
TimeBefore[3] = t[2] ;
TimeBefore[4] = t[2] ;
TimeBefore[5] = t[3] ;
TimeBefore[6] = t[3] ;
TimeBefore[7] = t[4] ;
TimeBefore[8] = t[4] ;
TimeBefore[9] = t[5] ;
TimeBefore[10] = t[5] ;
TimeBefore[11] = t[6] ;
TimeBefore[12] = t[6] ;
TimeBefore[13] = t[7] ;
TimeBefore[14] = t[7] ;
TimeBefore[15] = t[8] ;
TimeBefore[16] = t[8] ;
TimeBefore[17] = t[9] ;
TimeBefore[18] = t[9] ;
TimeBefore[19] = t[10] ;
TimeBefore[20] = t[10] ;

DaysAfter[1] = d[1] ;
DaysAfter[2] = d[1] ;
DaysAfter[3] = d[2] ;
DaysAfter[4] = d[2] ;
DaysAfter[5] = d[3] ;
DaysAfter[6] = d[3] ;
DaysAfter[7] = d[4] ;
DaysAfter[8] = d[4] ;
DaysAfter[9] = d[5] ;
DaysAfter[10] = d[5] ;
DaysAfter[11] = d[6] ;
DaysAfter[12] = d[6] ;
DaysAfter[13] = d[7] ;
DaysAfter[14] = d[7] ;
DaysAfter[15] = d[8] ;
DaysAfter[16] = d[8] ;
DaysAfter[17] = d[9] ;
DaysAfter[18] = d[9] ;
DaysAfter[19] = d[10] ;
DaysAfter[20] = d[10] ;

TimeAfter[1] = t[1] ;
TimeAfter[2] = t[1] ;
TimeAfter[3] = t[2] ;
TimeAfter[4] = t[2] ;
TimeAfter[5] = t[3] ;
TimeAfter[6] = t[3] ;
TimeAfter[7] = t[4] ;
TimeAfter[8] = t[4] ;
TimeAfter[9] = t[5] ;
TimeAfter[10] = t[5] ;
TimeAfter[11] = t[6] ;
TimeAfter[12] = t[6] ;
TimeAfter[13] = t[7] ;
TimeAfter[14] = t[7] ;
TimeAfter[15] = t[8] ;
TimeAfter[16] = t[8] ;
TimeAfter[17] = t[9] ;
TimeAfter[18] = t[9] ;
TimeAfter[19] = t[10] ;
TimeAfter[20] = t[10] ;

for count = 1 to count.end
begin
Line.ID[count] = TL_New( DaysBefore[count] , TimeBefore[count] , level[count], DaysAfter[count]  , TimeAfter[count]  , level[count]);

TL_SetColor( Line.ID[count] , Color.HL);
TL_SetSize(  Line.ID[count] , Size.HL  );
//	TL_SetStyle( Line.ID[count] , Style.HL );
end;


Share this post


Link to post
Share on other sites
Yes I reached my limits with arrays and I don't understand zigzag

I tried "my" indicator with 10 days long

It looks interesting especially scalping in 1 mn : the price stops always for a short break at highest last 1, 2 3 or more past days (cf picture below)

If you have time Could you make a correct code ?

Here is my terrible one

It works but slows down dramatically the software

Also the style is off





I have posted a sample code at the Trendline thread:

http://www.traderslaboratory.com/forums/showpost.php?p=63601&postcount=3



I posted it over there because the code does not use array.

Share this post


Link to post
Share on other sites
Yes I reached my limits with arrays and I don't understand zigzag

I tried "my" indicator with 10 days long

It looks interesting especially scalping in 1 mn : the price stops always for a short break at highest last 1, 2 3 or more past days (cf picture below)

If you have time Could you make a correct code ?

Here is my terrible one



It works but slows down dramatically the software



Also the style is off







that's because there is an error in coding:

the code is adding a NEW trendline at every bar.

the dotted line you see is not a dotted line...

each dot is actually a trendline; if you click on the dot, you can drag the dot out and see the trendline.

Share this post


Link to post
Share on other sites

Array Keywords



Array

Arrays

ArraySize

ArrayStartAddr



Array_Compare

Array_Copy

Array_GetMaxIndex

Array_GetType

Array_SetMaxIndex

Array_SetValRange

Array_Sort

Array_Sum

Share this post


Link to post
Share on other sites
i am a little bit out of this thread, but i'd like also make a comparison

about array in easylanguage and ninjatrader.

It would it be possible to explain how array works in c# and how to conver an array from easylanguage to c#?



For Ninjatrader/C# you might look here:



Arrays (C# Programming Guide)





Regards,



Hal

Share this post


Link to post
Share on other sites
Array Keywords



Array

Arrays

ArraySize

ArrayStartAddr



Array_Compare

Array_Copy

Array_GetMaxIndex

Array_GetType

Array_SetMaxIndex

Array_SetValRange

Array_Sort

Array_Sum



Hi TAMS,

Great Thread for newbie to ARRAY like me.........very useful......many Thanks!!!



Now I've some questions about arrays:

1) is it possible to make an array of arrays ?

For example an array made of 2 unlimited dimension array ?

FirstArray[ ] (0);

SecondArray[ ] (0);

MyFinalarray[FirstArray, SecondArray](0);



2) I know that an array could be a numeric array [ (0) ] or a string array [ (text) ] or a True/false array, but waht does it mean if I find an array like this:

MyArray [10] (-1);



Thanks for you contribution on this study about array.

CrazyNasdaq

Share this post


Link to post
Share on other sites
Hi TAMS,

Great Thread for newbie to ARRAY like me.........very useful......many Thanks!!!



Now I've some questions about arrays:

1) is it possible to make an array of arrays ?





are you talking about a 3 dimensional array?

Yes, you can build it with multiple arrays,

but no, it is not part of the EasyLanguage repertoire.







2) I know that an array could be a numeric array [ (0) ] or a string array [ (text) ] or a True/false array, but waht does it mean if I find an array like this:

MyArray [10] (-1);



Thanks for you contribution on this study about array.

CrazyNasdaq





initialize the array to the value of -1.

read post #1, example included.



.

Edited by Tams

Share this post


Link to post
Share on other sites
are you talking about a 3 dimensional array?

Yes, you can build it with multiple arrays,

but no, it is not part of the EasyLanguage repertoire.

No, I don't think that waht I want to build is a 3 dimensional array.

I'm trying to build a Volume profile so it's a 2 dimensional array.

First dimension unlimited and unknown is the range of each day (High of the day - Low of the day) * price scale (or tick scale as you want)



Second dimensional array the volume of each level price (unknown )



So the final array is an array of the 2 first arrays each one unlimited.

The final array I think is a 2 dimensional array.

Is it possible ???

Or I must use ADE and maps collections ?



Thanks again

CrazyNasdaq

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • Topics

  • Posts

    • Date : 12th December 2019. Lagarde prepares ECB debut – 12th December 2019.   Policy unchanged Projections unlikely to change much Clues about review sought Style in focus Presiding over her first presser of the European Central Bank today, Lagarde is expected to confirm once again the current policy setting, giving time to ECB to focus on the planned review of its overall policy framework.Final Eurozone GDP and PMI readings broadly supported this neutral picture, while the confidence that a deep recession can be avoided is strengthening (Figure 1) despite the fact that German manufacturing and production numbers still look weak. The exports and the overall trade are actually holding up much better than expected, which together with still strong labour markets is underpinning hopes the net exports and consumption will continue to support growth not just in Germany.Figure 1 : December German ZEW investor confidence outcome, end the year firmly in positive territory at the highest level since February 2018.As there is nothing in the data really to challenge the ECB’s overall policy stance, the focus firstly turns into the tone and presentation style that President Lagarde will have. The “risk” is that the presser will be equally uneventful as her testimony before the European Parliament. Lagarde’s team building exercise seems to have worked and at least in public there has been a pretty consistent message since she took over, which is very likely to be confirmed today. Additionally it will be interesting to see whether she will back fully Draghi’s package.Citi Bank: All key interest rates will likely be left unchanged, and the forward guidance reaffirmed. The main interest at this meeting will be the new Eurosystem staff projections, extended to 2022, to gauge whether the September package will be sufficient to bring inflation back into line with the ECB’s target over the forecast horizon. If not, investors’ attention will quickly turn to the ECB’s toolbox and what instruments the Governing Council would be willing to use and when, in order to defend its credibility in the absence of large fiscal support. The upcoming strategic review of monetary policy will also likely be the focus of many questions.Hence as reported by Citi, other than Lagarde’s style, ECB projections could also monopolize the attention. Even though, the ECB remains ready to act again and tweak all its measures if necessary, it has already done a lot and now needs to keep an eye on the side effects of the very expansionary monetary policy, while politicians need to do their bit to support the economy.The central bank won’t be reducing the degree of stimulus any time soon with many analysts supporting that this will continue until mid-2020 unless there is a major change in circumstance.Central bankers will be conducting a comprehensive review of the policy framework, however, with a special focus on the inflation target. A more symmetric definition, which stresses that the ECB can see through lengthy inflation overshoots as well as periods of too low headline rates is likely to come in the first quarter of next year. The inclusion of owner-occupied housing costs into the HICP number also remains a challenge especially as house prices are rising rapidly in some centres, also thanks to the low interest rate environment.Bund yields have nudged higher over the past week, but the German 10-year so far failed to move lastingly above -0.3%. Uncertainty on trade and Brexit are keeping a lid on yields, although there is the risk that if things go the way markets want and a phase one trade deal is confirmed and in the UK PM Johnson gets his majority, there could be a sharp rise in yields, if markets price out further easing and start to look ahead to central banks removing some of the stimulus.However this is far away for now, while central bankers are not looking eager to add further easing.Always trade with strict risk management. Your capital is the single most important aspect of your trading business.Please note that times displayed based on local time zone and are from time of writing this report.Click HERE to access the full HotForex Economic calendar.Want to learn to trade and analyse the markets? Join our webinars and get analysis and trading ideas combined with better understanding on how markets work. Click HERE to register for FREE!Click HERE to READ more Market news. Andria Pichidi Market Analyst HotForex Disclaimer: This material is provided as a general marketing communication for information purposes only and does not constitute an independent investment research. Nothing in this communication contains, or should be considered as containing, an investment advice or an investment recommendation or a solicitation for the purpose of buying or selling of any financial instrument. All information provided is gathered from reputable sources and any information containing an indication of past performance is not a guarantee or reliable indicator of future performance. Users acknowledge that any investment in FX and CFDs products is characterized by a certain degree of uncertainty and that any investment of this nature involves a high level of risk for which the users are solely responsible and liable. We assume no liability for any loss arising from any investment made based on the information provided in this communication. This communication must not be reproduced or further distributed without our prior written permission.
    • USDJPY Remains Biased To The Downside   USDJPY faces further price weakness despite its price hesitation on Tuesday. On the upside, resistance comes in at 109.00 level. Above this level will turn attention to the 109.50 level. Further out, we expect a possible move towards the 110.00 level on a break of that area, A cut through here will open the door for more gain towards the 110.50. On the downside, support lies at the 108.00 level where a break will target the 107.50 level. Below that level will turn focus to the 107.00 level and then lower towards the 106.50 level. On the whole, USDJPY faces further downside threats.
    • Sterling Advances Barely Hours To UK Elections As Latest Poll Predicts Conservatives Win In just two days from now, a major event that will set the trend for the currency market for the year 2020, the UK elections will be held. In the face of a Brexit extension, UK prime minister had pushed for an earlier election in the hopes of having a majority conservatives win in the parliament which will make the Brexit deal pass through easily. As the clock ticks, with barely less than 48 hours to this epochal event, the newest poll by Survation conducted for ITV’s good morning Britain show predicts a Boris Johnson win by 14 pts. ahead of Jeremy Corbyn‘s Labour party. The Brexit deal seemed to give the conservatives an edge as it accounted for 32% of the vote decision while NHS gave Labour party a slight edge. On the overall, a majority vote of 42% was predicted for the conservatives while Labour had 28%. Market Reaction as the Clock Ticks Optimism looms in the market as the prediction of a conservatives win will ease Britain’s exit from Europe by January 31 deadline. The EUR/GBP pair continued to fall till the early hours of today breaking the 0.8411 trend line targeting the 0.8149 resistance level. GBP/USD pair rebounded to consolidate briefly targeting 1.3381 resistance levels. Technical analysis within a 4-hour MACD shows that both pairs may likely touch down. CAD edged slightly higher advanced by USMCA news but yet to consolidate gains. The USD against a basket of five major currencies held steady awaiting FOMC’s minutes due out tomorrow. Against a basket of currencies, NZD’s dominance is the highest. Sterling also gained momentum firmed up by approaching UK elections. The safe-haven, the Japanese yen, and Swiss franc remain pressured as major events that will shape the market for 2020 are been anticipated. On the Asia side, significant market activity wasn’t recorded as most currency pairs held steady within a day’s range. In the Asian stock market, not so much activity was recorded being weakened by recently released Chinese PMI numbers. Most of the indexes closed a little lower while US stocks rose swiftly after Friday’s release of US non-farm payroll reports. The outcome of the December 15 deadline set by the US for the signing of a preliminary trade pact will determine the week’s direction and even further into the year 2020. Also due out later in the week is UK GDP figures and ZEW released out of Germany.
    • Date : 11th December 2019. FOMC Preview – 11th December 2019. FOMC Preview No policy changes or surprises are expected with today’s announcement (19:00 GMT) and Chair Powell’s press conference 30 minutes later. It will be interesting to see if, as expected, the voting is unanimous this time round. The FOMC members have expressed significant differences of opinion during 2019 as three rate cuts were implemented.  The apparent paradox of low unemployment and low inflation, the new “norm”. The two-digit unemployment rate (U-3) in November edged down to 3.53% from 3.56% in October, and a 3.52% cycle-low in September, all below the 3.58% prior cycle-low in April and a 4.00% rate at the beginning of the year. Current readings remain much lower than the 4.2% long-run unemployment rate projection noted in the September SEP, it is expected that this estimate will be trimmed today. Headline CPI rose 0.4% in October while the core index rose by 0.2%, for respective y/y gains of 1.8% and 2.3%, versus September figures of 1.7% and 2.4%. Today the November headline is expected to fall again to 0.2% and the core remains flat at 0.2% too. The Fed’s favoured inflation gauge, the PCE chain price measure, rose 1.3% y/y in October and expectations are for an uptick to 1.4% in November. The core PCE chain price measure rose 1.6% y/y in November, versus 1.7% in September, and expectations are for the pace to hold at 1.6% in November. The FOMC’s latest median estimates for 2019 inflation are 1.5% for the headline and 1.8% for the core. Hence, the focus will be on the Fed’s new quarterly forecasts, with expectations raised and likely to be mostly bullish results with a bump up in the median growth projection and a drop in the median dot to reflect a steady stance through 2020. However, the individual dots are likely to show both, forecasts for cuts and hikes. Chair Powell is expected to reiterate the US economy and policy are in a “good place,” (a phrase he has used a number of times lately) and could sound a little more upbeat after the strong jobs report. But, he will continue to warn of downside risks. The FOMC isn’t likely to announce any new measures on reserve management operations (QE?) or a repo facility. All steady into 2020 and beyond. USDIndex remains biased to the down side but has support around 97.40 and the 200-day moving average. A breach of this key support zone brings in 97.00 and the October low of 96.85. A break over 97.80 (the confluence of the 20 and 50-day moving averages) and 98.00 would be required before a re-test of the recent high at 98.50 could be considered. Always trade with strict risk management. Your capital is the single most important aspect of your trading business. Please note that times displayed based on local time zone and are from time of writing this report. Click HERE to access the full HotForex Economic calendar. Want to learn to trade and analyse the markets? Join our webinars and get analysis and trading ideas combined with better understanding on how markets work. Click HERE to register for FREE! Click HERE to READ more Market news. Stuart Cowell Head Market Analyst HotForex Disclaimer: This material is provided as a general marketing communication for information purposes only and does not constitute an independent investment research. Nothing in this communication contains, or should be considered as containing, an investment advice or an investment recommendation or a solicitation for the purpose of buying or selling of any financial instrument. All information provided is gathered from reputable sources and any information containing an indication of past performance is not a guarantee or reliable indicator of future performance. Users acknowledge that any investment in FX and CFDs products is characterized by a certain degree of uncertainty and that any investment of this nature involves a high level of risk for which the users are solely responsible and liable. We assume no liability for any loss arising from any investment made based on the information provided in this communication. This communication must not be reproduced or further distributed without our prior written permission.
×
×
  • Create New...

Important Information

By using this site, you agree to our Terms of Use.
